Coin Chocolate Cover and Emboss Packing Machine
| Unit Price: | 24000~24000 USD |
|---|---|
| Min. Order: | 1 Set/Sets |
| Supply Ability: | 200sets/Year |
|---|---|
| Port: | Shanghai |
Product Description
Main Description

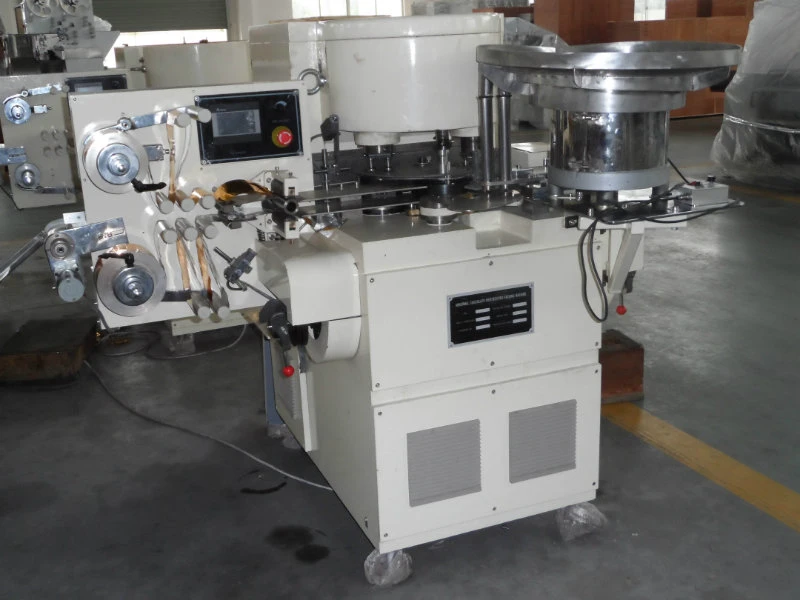

This chocolate knurling & packing machine, which is composed of PLC Controlling system, packing foil device, photocell tracking system, chocolate vibrating hopper, chocolate knurling system, belt conveying system, machine frame, etc. is mainly used for foil chocolate packing after absorbing the advanced technology from home and aboard. Currently, it has combined knurling and packing chocolate into one full-automatic process.
Main Principle
Chocolate Feeding ----Chocolate Vibrating & Arranging ----PLC setting -----Packing Foil Conveying ---Knurling & Packing-----Finished Packing
Main Parameter
| Overall dimension | 1500×1330×1400mm |
| Production capacity | 50-80PCS/min |
| Packing product diameter | 30-65mm |
| Aluminum foil reel dimension | outside diameter 160mm, inside diameter 35-40mm |
| Packing materials | 0.05mm thick aluminum foil |
| PS: All Specifications can be Customized. | |
Main Feature
1. Adopting full-automatic PLC controlling system, realizing the Photocell Tracking process: No candy conveying, no packing materials.
2. More Options in different chocolate coin knurling & packing , adjustable packing speed, fabulous & vivid knurling and packing outlook.
3. Parts Contacting Food made by food Grade 304 SS makes materials cater CE HACCP FDA GMC SGS International Standards.
4. Imported electric appliances, such as Omron, Siemens, Schneider, etc. ensuring stable working performance without defaults.
NANTONG WEALTH
- 1
- 2
- 3
- 4
- 5
Nantong wealth machinery technical co.,ltd is specialize in producing complete sets of confection production lines.we are standing number of CFPMA and the high technical company of China.we have devote to complete sets toffee line,hard candy line,bubble gum line,chewing gum line,chocolate line,etc.our products have exported to Southeast Asia,Middle East,EU,Americas and have enjoyed a high reputation there.
Our company located at Rugao city where is a famous longevity city in Jiangsu province.the company covers 6000㎡,area structure 23000㎡.There are 180 skilled workers,in which 50 workers are technicians.the capitol assets are more than thirty million RMB.including 180 sets of mechanical processing equipment,equipment design center,equipment physical&chemical experiment center and food technology laboratory.
Our aim always be research enterprise,always relying on science and technology,take EU machine as direction,trying to be the high quality equipment production base in China.
Company Info
- Company Name: NANTONG WEALTH
- Representative: Shizhiyong
- Product/Service: Candy machine , gum machine , wrapping machine , Bubble gum machine , Hard candy machine , Chewing gum machine
- Capital (Million US $): 11800,000RMB
- Year Established: 2007
- Total Annual Sales Volume (Million US $): US$5 Million - US$10 Million
- Export Percentage: 61% - 70%
- Total Annual Purchase Volume (Million US $): US$1 Million - US$2.5 Million
- No. of Production Lines: 10
- No. of R&D Staff: 21 -30 People
- No. of QC Staff: 5 -10 People
- Factory Size (Sq.meters): 30,000-50,000 square meters
- Factory Location: NO201,EAST QINGYU RD,RUGAO,JIANGSU,P.R.CHINA
- Contact Person: Mr. zhou
- Tel: 86-135-84689152
