● High quality and precision components ● Adopt stainless steel anti-rust and protection ● Fully enclosed organ shield ● Control software designed for all kinds of cutting

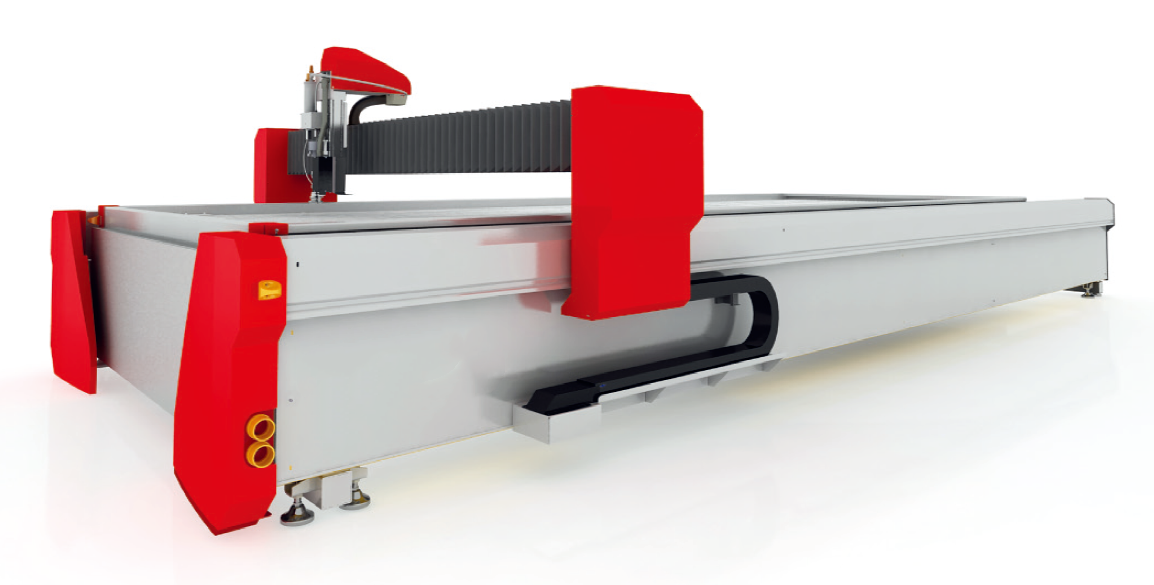

CNC Waterjet Cutting Machine 5 Axis Waterjet Cutter
Product Description
Recommend Products
Product Description
Introduction
Water jet technology is the ordinary water through the ultra-high pressure supercharger, the pressure increased to 100000PSI. Water arrows are then formed through a tiny gem nozzle hole. There are two types of water jet cutting: pure water cutting and abrasive cutting.
Characteristic
Charasteristic
● Water level control
1. It can easily cut stainless steel plate or hard marble, granite, etc. for those due to other reasons Materials that are difficult to cut by this method, such as aramid, titanium alloy and other composite materials, are ideal or the only processing method. 2. There is no crack when cutting, it can cut the material with narrow gap. Generally speaking, the incision of pure water cutting is about 0.1 mm to 1.1 mm, and that of sand cutting is about 0.8 mm to 1.8 mm. As the diameter of the inner hole of the sand nozzle increases, the incision becomes larger.
Specifcation
FB-318 | |
X Axis Cutting Stroke | 3m |
Y Axis Cutting Stroke | 1.8m |
Z axis Stroke | 180mm |
CNC Control | SEMYX |
CAM Software | Included |
Cutting Speed | 0-15m/min |
Free Speed | 20m/min |
Acceleration | 1m/s2 |
Accuracy | 0.08mm |
Drivers | AC Servo Motors |
Motion for X Axis | Ball Screw |
Motion for Y Axis | Ball Screw |
Motion Part Protection | Bellow |
Pump | 50HP |
Pump pressure | 4000Bar |
Z -axis | 1 |
Water Treatment System | optional |
Abrasive Tank Capacity | 50 L |
Abrasive Feeder | Automatic |
Abrasive Removal | optional |
Layout | See the layout |
Company Profile
Our Service
Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITED（Canada）
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA
COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Cell phone: +201223960211
Contact: Ahmed Refaat
SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
Packing & Delivery
We choose the best packaging, the most excellent logistics services, to ensure that your goods faster and safer to reach the destination.
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
