Automotive Crankshaft Grinding Machine Rectifieuse De Vilebrequin
Product Description
Recommend Products
Product Description
Introduction

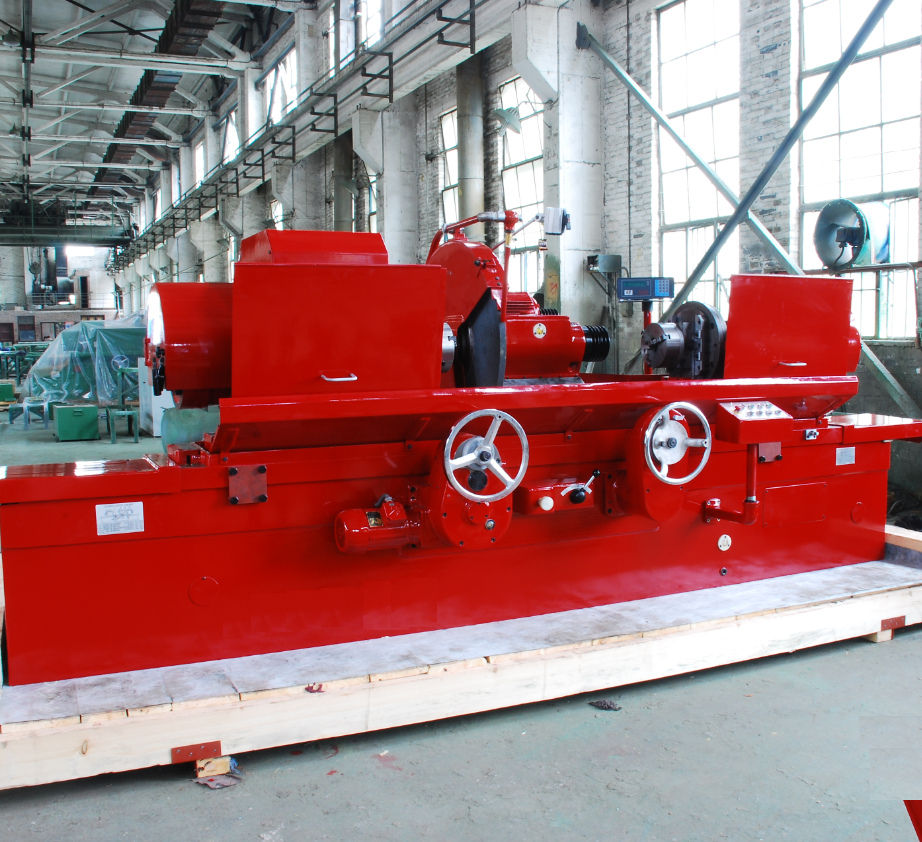

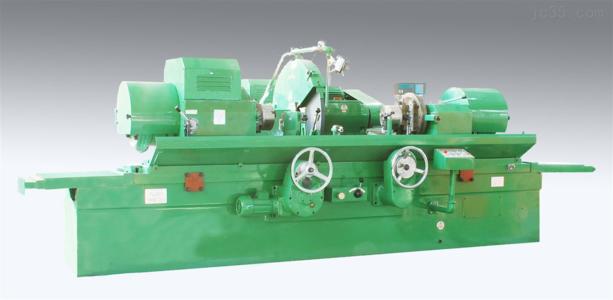

The crankshaft grinding machine MQ8260A is a simple structure,easy operation,wide applicability of the crankshaft grinder for automobiles,stractors,siesel engine repair shop crankshaft grinding spindle crank neck and neck,but also fo cylinderical grinding machine for general excircle grinding.
Structural Features:
⭐machine tools,electrical,hydraulic control,mannual control bassel.
⭐base type machine left and right using adjustable cross chuck chuck.improve work piece installation,adjustment efficiency.
⭐With top or the workpiece clamping chuck.the head frame motor drive,manual feed grinding
⭐About the amount of cross chuck maximum adjustable vertical 110mm,transverse 2mm,the chuck further hang a trace swivel adjustment,the range of 0-30 °
⭐Parts,wheel,bench,cooling pump,oil pump driven by a separate motor.
Specification
Specifications | Unit | MQ8260B | ||
Max work diameter*Max work length | mm | 580*1800 | ||
Capacity | Max swing over table | mm | 580 | |
Workdiameter ground with steady rest | mm | 30-100 | ||
Throw of crankshaft | mm | 110 | ||
Max.work length ground :in 3-jaw chuck | mm | 1400 | ||
Between centers | mm | 1600 | ||
Max.work weight | kg | 120 | ||
Head-stock | Centre height | mm | 300 | |
Work speed | rpm | 25/45/95 | ||
Wheel head | Max cross movement | mm | 185 | |
Wheelhead rapid approach&withdrawal | mm | 100 | ||
Wheelhead feed per turn of cross feed handwheel | mm | 1 | ||
Wheel feed per grad of cross feed handwheel | mm | 0.005 | ||
Grinding wheel | Wheel spindle speed | rpm | 740/890 | |
Wheel peripheral speed | m/sec | 25.6-35 | ||
Wheel size | mm | 900*32*305 | ||
Table | Table traverse per turn of handwheel:coarst | mm | 5.88 | |
Table traverse per turn of handwheel:fine | mm | 1.68 | ||
Table swivel(taper 18/100) | ° | 5° | ||
Table swivel pergrad of scal(taper1:50) | ' | 10' | ||
Overall capacity of motor | kw | 9.82 | ||
Overall dimensions(L*W*H) | mm | 4166*2037*1584 | ||
Weight | Kg | 6200 | ||
