Application Fields:

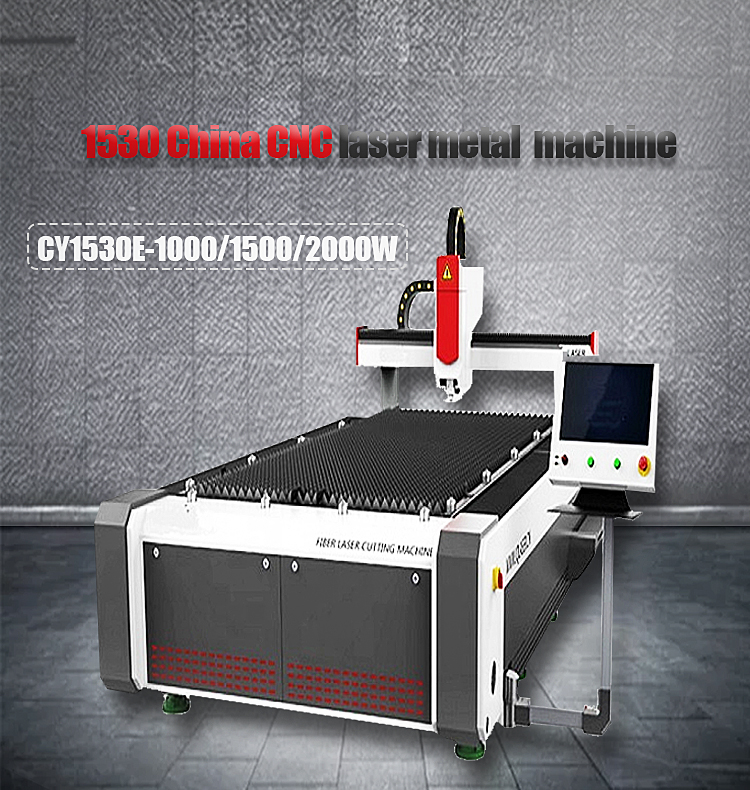

CY1530E-1000/1500/2000W fiber Laser cutting machine is the perfect combination of numerical control technology and laser system.
It supports the cutting of sheet metal with 3000mm×1500mm format. It is with fast processing speed, small thermal effect and
smooth slit. It is sheet metal processing industry preferences.
New Fiber Metal CNC Laser Engraving Cutting Machine with Nice Price
Product Description
Recommend Products
Product Description
The CY1530E features a fiber cutting head with Swiss technology and a professional QBH fiber optic output interface for a highly
sealed and precise focus calibration. Owing to the excellent performance of high-speed capacitive sensor, the cutting gap can be
as short as 0.1mm, which not only improves the cutting performance, but also reduces the gas consumption.
sealed and precise focus calibration. Owing to the excellent performance of high-speed capacitive sensor, the cutting gap can be
as short as 0.1mm, which not only improves the cutting performance, but also reduces the gas consumption.
Mobile gantry structure machine base
The mobile gantry structure, the beam and the machine base are whole processed, and the equipment has high precision, good rigidity and stable operation.
Machine base: frame structure welded with high quality pipe, professional welding, secondary aging treatment, precision machining of large gantry milling machine. These design and processing methods ensure the machine has excellent shock resistance, high rigidity and stability.
The guide rail is equipped with a dust cover to prevent dust and debris from falling into the guide rail to affect the movement, keeping clean and smooth movement. The stainless-steel plate is installed at the connection between the dust cover and the beam to prevent the spark cover from being quickly damaged and burning.
The mobile gantry structure, the beam and the machine base are whole processed, and the equipment has high precision, good rigidity and stable operation.
Machine base: frame structure welded with high quality pipe, professional welding, secondary aging treatment, precision machining of large gantry milling machine. These design and processing methods ensure the machine has excellent shock resistance, high rigidity and stability.
The guide rail is equipped with a dust cover to prevent dust and debris from falling into the guide rail to affect the movement, keeping clean and smooth movement. The stainless-steel plate is installed at the connection between the dust cover and the beam to prevent the spark cover from being quickly damaged and burning.
Cyptube Control software
General functions include graphics processing, parameter settings, custom cutting process editing, nesting, path planning,
simulation, and cutting process control.
Supports speed-dependent power adjustment and can set separate lead-in line speeds.
The material process library function allows all process parameters to be saved for reuse of the same material.
General functions include graphics processing, parameter settings, custom cutting process editing, nesting, path planning,
simulation, and cutting process control.
Supports speed-dependent power adjustment and can set separate lead-in line speeds.
The material process library function allows all process parameters to be saved for reuse of the same material.
Specification
Model | CY-1530E | Unit |
Working area | 3000x1500 | mm |
X-axis travel | 1550 | mm |
Y-axis travel | 3050 | mm |
Z-axis travel | 120 | mm |
X,Y positioning accuracy | ±0.05/1000mm | mm |
X,Y repeat positioning accuracy | ±0.03/1000mm | mm |
Acceleration | 1G | m/s² |
Max running speed | 80 | m/min |
Table max load | 900 | Kg |

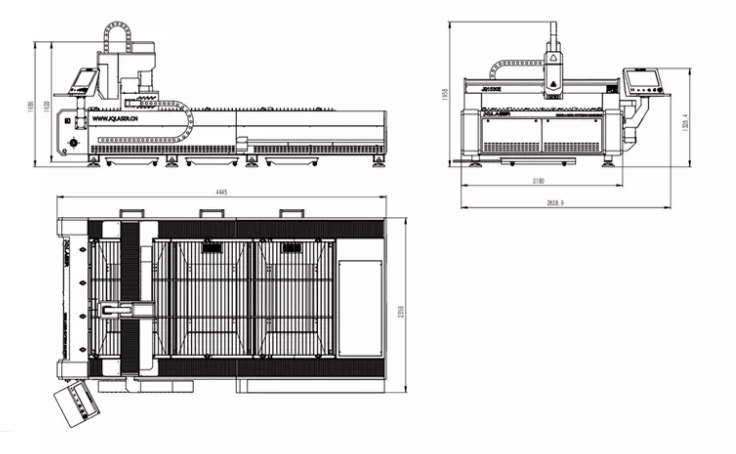

Machine size(LxWxH) | 4700×2200×1600 | mm |
Laser power | 1000 | w |
Control system | Fscut | |
Whole machine power | Kw | |
Machine voltage need | 380v/50Hz |

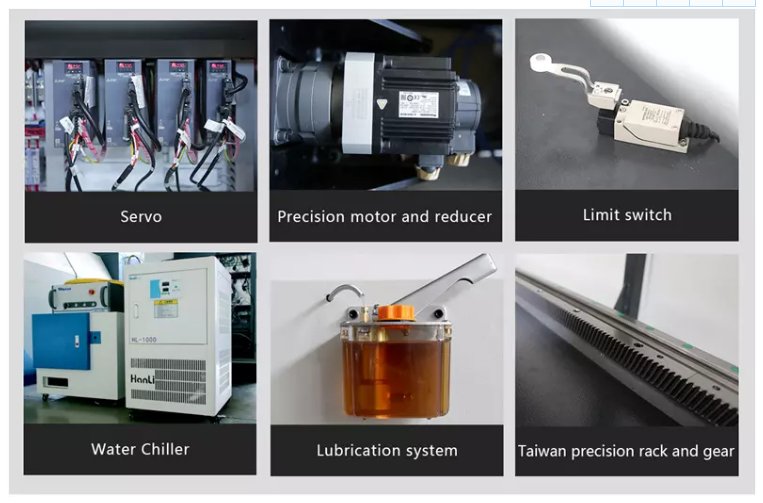

Machine configuration
Item | Brand | Origin/Country | Quantity |
Servo Motor | Fuji | Japan | 7 sets |
Linear Guides | Dinghan | Taiwan | Whole sets |
Gear rack and pinion | Apex | Taiwan | Whole sets |
Machine servo reducers | Motovario | France | 6 sets |
Chucks | Liyuanheng | China | 1 set |
Pneumatic Components | AirTAG | Taiwan | Whole sets |
Laser source | Raycus | China | 1 set |
Laser head | Raytools | China | 1 set |
Chiller | Hanli | China | 1 set |
Air condition | Tongfei | China | 1 set(option) |
Low voltage electrical components | CHNT | China | Whole sets |
Industry Computer | China | China | 1 set |
Lubrication | China | China | 1 set |
Control system | Fscut | China | 1 set |
Company Profile
Our Service
Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITED（Canada）
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA
COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Cell phone: +201223960211
Contact: Ahmed Refaat
SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
Packing & Delivery
We choose the best packaging, the most excellent logistics services, to ensure that your goods faster and safer to reach the destination.
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
