Nice Price XH7126 Small 3 Axis Vertical Machining Center CNC Milling Machine
Product Description
Product Description
Introduction
With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, the machine is widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipment for large automation production.
Main Components: | ||||
No. | Name | Standard Configuration | ||
1 | Ball Screw | Shaanxi Hanjiang | ||
2 | Spindle Unit (Optional Accessories) | Jining Best Precision | ||
3 | Electric System | Chang’an Electric | ||
4 | Oil Pump | China South Pump | ||
5 | Working Lamp | Tengzhou Sanying Electric | ||
6 | System | Siemens,Great, Huazhong, GSK and KND | ||
7 | Cylinder (Optional Accessories) | Wuxi Xieqing | ||
8 | Flange Bearings (P5) | Haerbin | ||
9 | Tool Magazine | Taiwan DYSO | ||
10 | Line guide rail | Taiwan shangyin | ||
High-rigidity/high-stability main structure
⭐Use 3D-CAD and finite element analysis to delevlop high-rigidity machine tool structure
⭐Use 3D-CAD and finite element analysis to delevlop high-rigidity machine tool structure
⭐Resin bonded sand molding,twice aging,and special tank-type structure and optimized rib-reinforced lay-out,make the machine tool of good rigidity and hysteresis loss.
Standard Allocations:
2.12 ATC BAMBOO Type

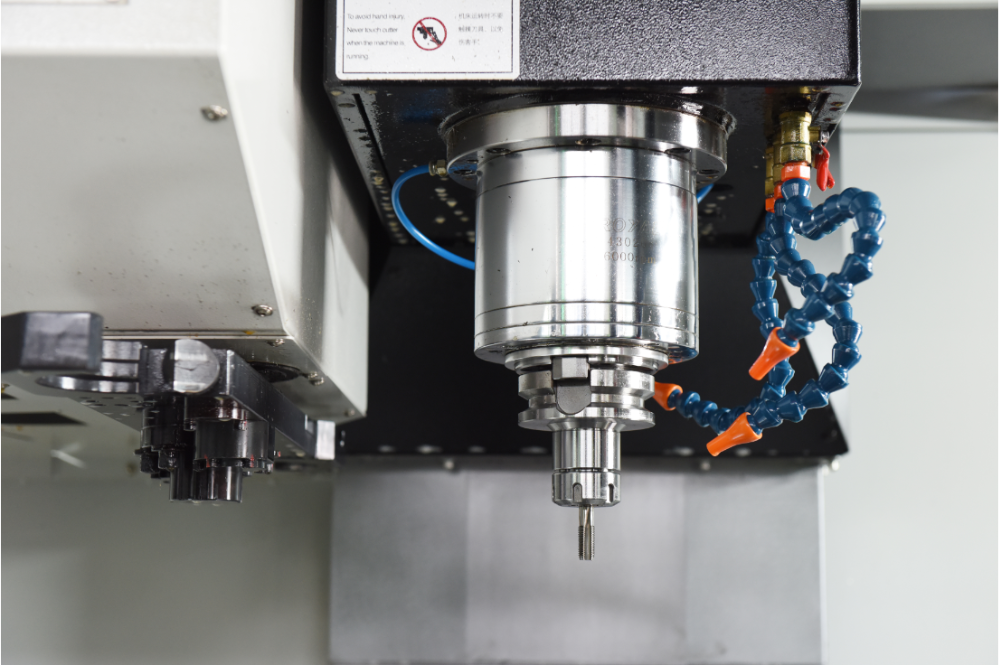

3.Taiwan Spindle
Optional Allocations:
2.Linear guide use HIWIN or ABBA: $250
3.GSK CNC System 980: Remain same price
4.Siemens CNC System 808: $600
.
Specification
Model | XH7126 |
Main Motor Power KW | 3.7KW |
Spindle Max. Rotating Speed | Servo Spindle 6000rpm |
Z Motor Torque | 7.7N.m |
X Motor Torque | 6N.m |
Y Motor Torque | 6N.m |
Spindle Taper | BT40 |
Worktable Size | 800X260mm |
Travel（Longitudinal X/Horizontal Y/Vertical Z） | 450X320X420mm |
Distance of Spindle Axis to Guideway Plane | 360mm |
Distance of Spindle End to Worktable | 60-480mm |
The Vertical Permissible Error of Spindle Axis to Worktable Plane | ≤0.02mm |
Positioning Accuracy | 0.02mm |
Repeated Positioning Accuracy | 0.01mm |
Machine Overall Dimension (L*W*H) mm | 2600*1950*2400 |
Machine Net Weight KG | 2400 |
Magazine Capacity | 10/12 (Bamboo Hat) |
System Configuration | KND1000M CNC Control System |
External Protection Level | Full Closed |
Recommend Products
Company Profile
Our Service
Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITED（Canada）
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA
COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Cell phone: +201223960211
Contact: Ahmed Refaat
SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
Packing & Delivery
We choose the best packaging, the most excellent logistics services, to ensure that your goods faster and safer to reach the destination.
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
