⭐Pneumatic combination friction clutch-brake, Iow noise and long service life, to ensure reliable safety and flexible action.

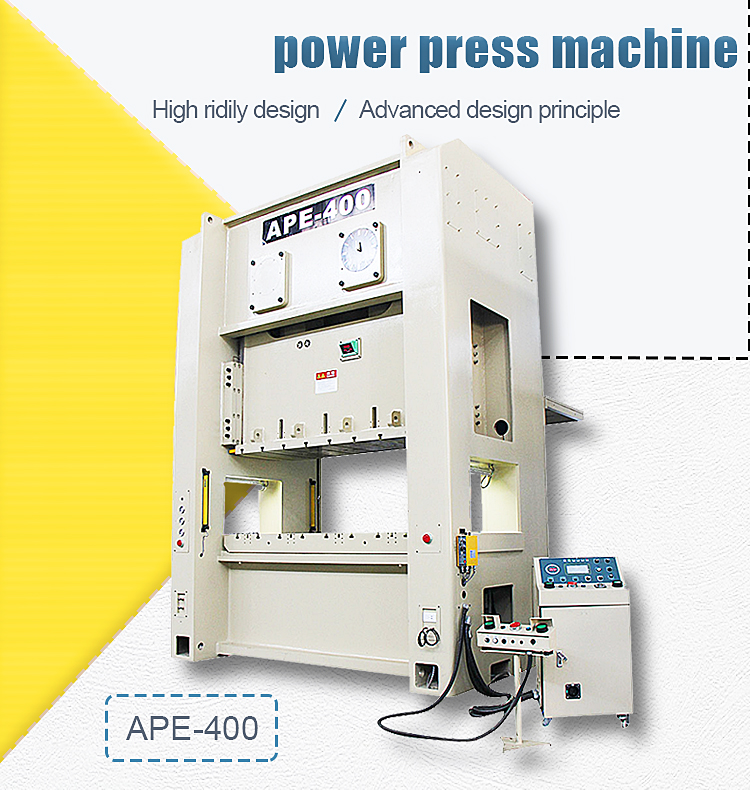

400 ton APE H type two point eccentric shaft metal punching power press machine
Product Description
Recommend Products
Products Description
⭐Steel-welded and closed-type structure frame, eliminating angular deformation and enhancing the processing precision and long die durability.
⭕Six-side long rectangle guides of the slide in high moving precision and high accuracy,extending the service life of the die.
⭕Pneumatic combination friction clutch-brake,low noise and long service life, to ensure reliable safety and flexible action.
⭕Main drive Gear immersed in a closed oil tank, running smoothly with Iow noise.
⭕Variable stroke speed, metting the requirements for the processing of different parts and components.
Item | Brief Description | ||
Machine Body | Basic Parts | Steel plate welded structure, through vibration aging treatment, the overall heat ageing annealing treatment. (Double aging treatment) | |
Bolster | basic parts | Made from Casting HT200,through annealing treatment | |
Crank | Basic Parts | Made from Forging, through flaw detection ,surface quenching, nitriding processing | |
Fly Wheel | Basic Parts | Casting HT200,Through Annealing Treatment | |
Worm | Basic Parts | Zinc-based alloys | |
Worm Gear | Basic Parts | Made from 45# steel | |
Connecting Rod | Basic Parts | Made from Ductile iron, cast iron, and throughnormalizing treatment | |
Ball Head and Screw | Basic Parts | Made From 45# steel, surface by Nitriding treatment | |
Balance Cylinder | Parts | Cylinder Body Inside Through Honing Processing | |
Specifcation
Model | APE-400 | |
Capacity | Ton | 400 |
Rated tonnage point | mm | 7 |
Stroke | mm | 300 |
Die height | mm | 550 |
Slide adjustment | mm | 120 |
Slide area | mm2 | 2800*1000 |
Bolster area | mm2 | 3200*1000 |
Side opening | mm | 900*600 |
Main motor | kw.p | 30*4 |
Slide adjust device | Kw*p | 2*4 |
Air pressure | kg/cm2 | 6 |
Presses precision | GB(JIS) 1 class |
