Cheapest CNC Automatic 5 Axis 3D Wire Bending Machine
Product Description
Products Description
Description
This model is mainly for the kitchen accessories, automotive sun visor skeleton, car door lock rod, designed for a variety of wire forming, with full processing capacity and high processing speed and accuracy.

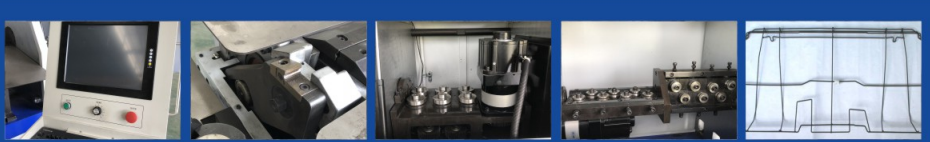

1--CNC automatic control system 2--Man-machine interface,easy to understand and manipulate 3--Input by keyboard and mouse, standard windows XP operating system 4--High-definition screen, max visible angle 160° 5--Competible with other Magelis iPC, support for Internet/intranet access, fast dual-Ethernet.
6--Automatically accomplish feeding, straightening , bending, cutting and end forming. 7--widely used in light industry, wire processing enterprises ,manufacturing industry and commodity production industry.(for example, clothes hanger production ). 8--Could be used together with traditional bending tools 9--1000w alternating current servo motor, easy to accelerate and decelerate 10--Rotation range:-180°~+180° (or even more large range by computer programming and input) 11--Bending head, through the different diameter forming block, allows the machine to make any different bending radius on the same part,especially for the specific professional mold.
Specifcation
NO.of axis | 7 | |
wire diameter(mm) | hard material 3-7 | |
no.of wire feeding wheel | 3 pairs | |
motor | wire feeding | 2.7kw |
wire turning | 2.7kw | |
wire cuter | 2.7kw | |
angle control | 2.7kw | |
plate control | 2.7kw | |
lift contro | 2.7kw | |
pallet contro | 2.7kw | |
weight of machine(kg) | 3500 | |
machine dimension(mm) | 3800x2000x1650 |
Accessories name | Brand origin |
Servo motor and encoder | SANYO/ YASKAWA |
Straight line rails | Taiwan HIWIN) |
Switching Mode Power Supply | Taiwan Meanwell |
Screen | Taiwan AUO |
Frequency converter | Taiwan Taiwan Delta |
Numerical control system | Taiwan TOPCON/HUST) |
Bearing | Japan NSK |
Reducer | Germany Twisted Carter /Taiwan Pinhong |
Seat material | A3 steel : |
Keyboard | Logitech |
Computer motherboard | Taiwan TOPCON |
Ball screw | Taiwan HIWIN |
Recommend Products
Company Profile
Our Service
Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITED(Canada)
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA
COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Cell phone: +201223960211
Contact: Ahmed Refaat
SJR MACHINERY LIMITED(Algeria)
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
SJR MACHINERY LIMITED(Algeria)
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
Packing & Delivery
We choose the best packaging, the most excellent logistics services, to ensure that your goods faster and safer to reach the destination.
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
