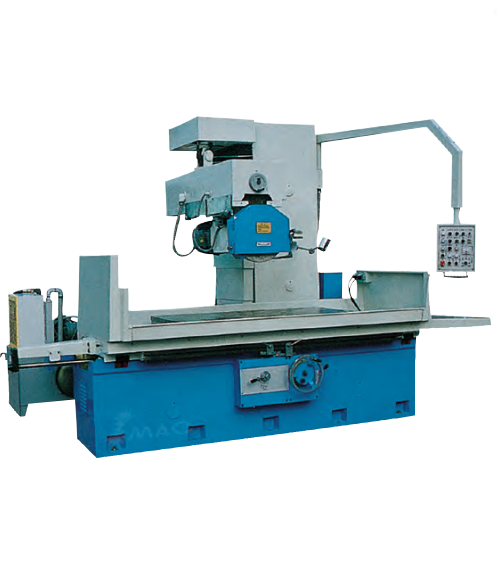

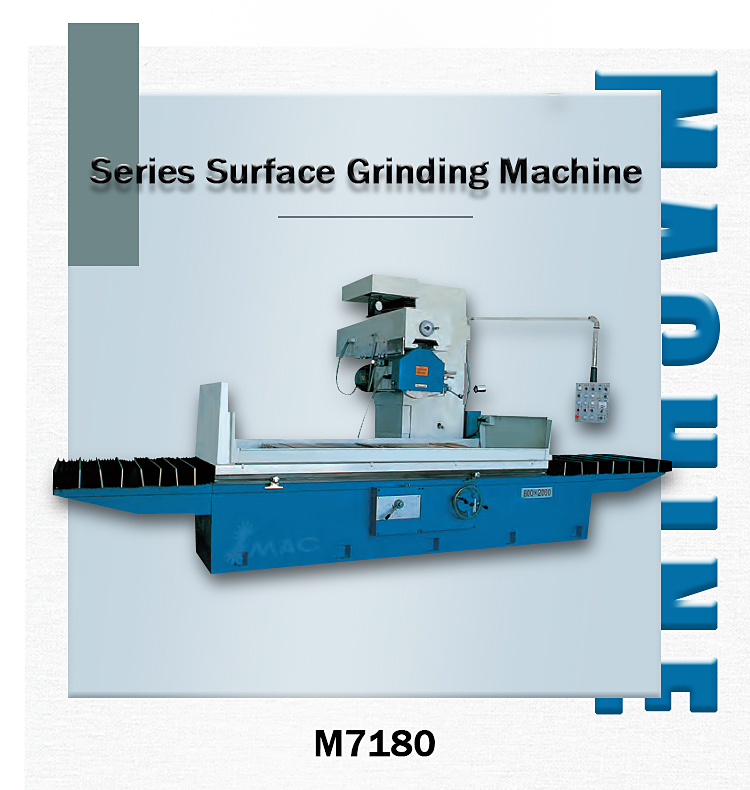

*M7180 Series Surface Grinding Machines
This series of machine tool is suitable for machine-manufacture trade to grind the planes of various metal parts such as steel,
cast iron and nonferrous metal, etc.
Characteristic:
A.The wheel spindle adopts high precision rolling bearing with strong rigid construction and high precision.
B.The wheel spindle adopts high precision hydrodynamic-hydrostatic bearing with strong rigid construction and high precision.
It has a special hydraulic device, automatic lubrication system and cantilever push-button device with perfect shape.
The lengthways moving of the working table is hydraulic transmission.
M7180 Series HIgh Precision CNC Vertical Surface Grinding Machines Surface Grinder
Product Description
Product Description
Specification
13908 | 13908-1 | 13908-2 | 13908-3 | 13908-4 | 13908-9 |
Main Specifications | M7180x12A-GM | M7180x16A-GM | M7180x20A-GM | M7180x12B-GM | M7180x16B-GM |
Table working surface (WxL) | 800x1250mm | 800x1600mm | 800x2000mm | 800x1250mm | 800x1600mm |
Max. size worke-piece to be ground (WxLxH) | 800x1250x600mm | 800x1600x600mm | 800x2000x600mm | 800x1250x600mm | 800x1600x600mm |
Table longitudinal travel (hydraulic) | 200-1350mm | 200-1700mm | 200-2100mm | 200-1350mm | 200-1700mm |
Speed of table (stepless) | 3-25m/min | 3-25m/min | 3-25m/min | 3-25m/min | 3-25m/min |
Grinding wheel size (O.D x W x l.D) | Φ450x63xΦ203mm | Φ450x63xΦ203mm | Φ450x63xΦ203mm | Φ450x63xΦ203mm | Φ450x63xΦ203mm |
Wheel-head rapid up-down traverse speed | 325mm/min | 325mm/min | 325mm/min | 325mm/min | 325mm/min |
Hydraulic pump Delivery | 107L/min | 107L/min | 107L/min | 107L/min | 107L/min |
Electrical equipment total capacity | 28kVA | 28kVA | 28kVA | 28kVA | 28kVA |
Grinding wheel motor power Speed | 15kw 1460r/min | 15kw 1460r/min | 15kw 1460r/min | 15kw 1460r/min | 15kw 1460r/min |
Working surface to base level parallelism | 300:0.008mm | 300:0.008mm | 300:0.008mm | 300:0.008mm | 300:0.008mm |
Surface roughness | Ra0.63μm | Ra0.63μm | Ra0.63μm | Ra0.63μm | Ra0.63μm |
Max. allowable weight of work-piece (Including electromagnetic chuck) | 2000kg | 2000kg | 2472kg | 2000kg | 2000kg |
Electromagnetic chuck | 800x1250mm | 800x(800x2)mm | 800x(1000x2)mm | 800x1250mm | 800x(800x2)mm |
Overall dimensions (LxWxH) | 3540x2350x2730mm | 4500x2350x2730mm | 6250x3600x2850mm | 3540x2350x2730mm | 4500x2350x2730mm |
Packing case dimensions (LxWxH) | 425x246x309cm | 450x246x309cm | 483x259x309cm | 425x246x309cm | 450x246x309cm |
N.W/G.W | 9500/10500kg | 11000/12000kg | 12000/13500kg | 9500/10500kg | 11 |
